Plastic Pipe Printing machine NSD manufacturer from China ZHANGJIAGANG NEWSTAR MACHINERY TECHNOLOGY CO.,LTD

Price:	500.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Jiangsu, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: NSD

Production Capacity: 10 sets per month

Delivery Date: 30 days

Use: Others

Brand Name: NEWSTAR

Capacity: depends

Means of Transport: Ocean,Land,Air

Packing: film with wooden case

Plastic Type: Others

Shaft Design: Others

Power: depends

Name: Plastic Pipe Printer

plastic pipe printer

Plastic Pipe Printer

Applications:

Ink printer

1,It is applied to various plastic pipes.

2,Achieve the good effect of spraying code by adopting chain transmission technology.

3,In order to prevent slip for printing too fast, the machine equipped with initiative synchronizing wheel

JET Printer:

1.Using solvent-based ink, it is difficult to block nozzle based on the prevent clogging design technology,reduce to the time for squeeze ink;Nozzle multiple protection,avoid the nozzle surface damage caused by scrape, rub, hit,To ensure long time trouble-free operation, the inkjet printer reliability is a greatly improve than others.

2.Meet the 24 hours of continuous production.

3.Use oil-based ink, the nozzles can not clogged, 100% maintenance-free.

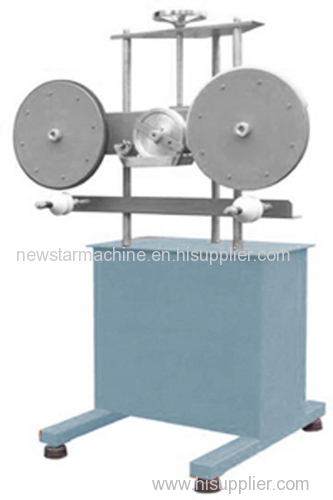

Plastic pipe ribbon printer:

1.It can continuously print factory name, product standards, product specification, trademark on the surface of wire and pipe ,rubber and plastics,

2.it is special suitable for printing label on plastic pipe product in construction-material industry.

Description:

The machine has engine base , ink plate, printing wheel and adjusting mechanism.simple structure, convenient operation, ideal adjustment. Main parts are made of stainless steel, cabinet surface is plating, strong wear resistance and corrosion resistance, good looking.

Printing uses traction of take-up machine,Through the pressure wheel and the wheel clamp wire friction torque traction words wheel and pressing wheel rotation, wheel ink wheel has also been driven by the ink applied to the wheel, turn the wheel through spatula scrape peripheral surface of the ink (ink retaining only flag) after the cable tight synchronization with embossed printing crisp text patterns. Another place, when the passage of plastic tumors when unattended, automatic roller lift, plastic tumor to be passed, resume normal operation automatically.

Specifications:

Ink printer:

Print Height	0.8-18mm
Print Spacing	8mm-10mm,it is subject to the printing content & ink type
Print Lines	The lines unlimited within Max height 18mm.
Print Length	Single file max length 20000 dots (the Max height 2.54m when the resolution is 200DPI)
Print Speed	60m/min (Cross direction resolution 100DPI)
Print Resolution	Resolution height is 200DPI; Cross direction resolution 100-400DPI can be adjustment
Print Fonts	The built-in various font, and horizontal bar,vertical bar,dot-matrix,bold font can be free change.
Print Content	Real Date, Real time, Photo, Letter, Shift group, Serial number, Batch number, Lot number Barcode and 2D code can be free print.
Print Direction	Upward printing, downward printing, side printing(360°direction printing)
Font library	Standard font library are Chinese & English, and The Spanish,Portuguese,Arabic font library can be optional
Operator Interfaces	Image-style & Chinese or English ( Spanish,Portuguese,Arabic)menu, What you see is what you get.
Memory Function	More than 1000pcs text can be storage
Display	3.5inch color touch screen
Ink Type	Ink is originally from UK. There are Solvent-based ink (machine should be regular maintenance); Invisible ink (Machine should be regular maintenance); Oil-based ink (machine maintenance free). It can be print on the surface of plastic,glass,metal,paper,wood...
Ink Color	Black, Red,Yellow, Blue,Green,white, etc…
Each Ink Cartridge	Each ink cartridge can be print 1.15 billion ink dots, when efficient production: 86,800,000.00pcs 7×5 Micro point fonts or 21,700,000.00 pcs7×5standard dot-matrix font(theoretical value) each ink cartridge can be print 500,000.00 to 1 million pcs bottle cover or medicine box with 2 lines or three lines, the using cost for each product is RMB0.001Yuan); *each ink cartridge can be print 50,000.00 to 100,000.00pcs big carton with one line or two lines big dot-matrix font, , the using cost for each carton is RMB0.01Yuan);
Protection level	Not suitable for high dust, high humidity working environment
Weight of Machine Dimension of Machine	1.8KG 148135105mm
Powder	AC220V±10%, 50-60HZ, 5 W;
Humidity Range Temperature Range	10-90% Non-condensing 5-40°C

JET PRINTER:

JET PRINTER
Line speed capability	40M/min
Print height	Up to 53.5mm
Line numbers	Unlimited
Fonts	More than 10 varieties
Printing functions	180°text rotation
	Dot size, character width and height are adjustable
	Printing delay is adjustable
	Bold factor from 1 to 9 times
	Date, time, barcode, serial number and shift group are adjustable
	Repeat printing automatically
	1000 messages storage
Inks type	Water-base inks
	Oil-base inks
	Quick drying inks
Inks color	Yellow, white, black, red, purple, green and blue
Other special inks	Food grade inks, UV inks, anti-scrub inks
System protection grade	IP65 rating (selectable)
Power supply:	90-240V 50/60Hz 18W
Environment requirement	Temperature: 5-40°C
Environment requirement	Humidity :10%-90%(non-condensing)
Interface	USB, synchronizer, sensor
Print head size	1001744mm
Host machine size	274222100mm
Print head weight	165g
Host machine weight	2900g

Plastic pipe ribbon printer:

Model	YYJ-1
Suitable diameter range(mm)	10-250
height of mechanical work (mm)	850-1050
Superscript lettering round specifications(mm)	86×12.7×20D×d×h
Rubber round specifications(mm)	172×20×20D×d×h
Vortex pump power(Kw)	Voltage 380V0.37Kw
dimensions(mm)	1300×560×480
Weight (Kg)	150
